| Brand Name : | Healthy Filter |
| Certification : | ISO9001/RoHS/SGS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time : | 7-20days |
Specialty:

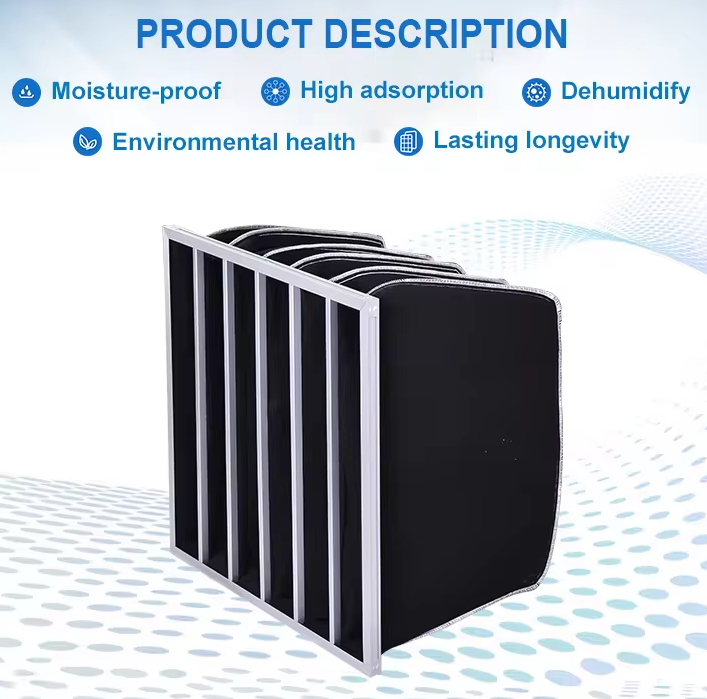

1.Activated carbon bag filter:the filter bag is made of high adsorption activated carbon fiber and filter cotton composite , surface adsorption capacity is strong , effective . Control the odor and organic pollution in the air , strong adsorption capacity , low resistance
2.Product frame : aluminum alloy frame, galvanized steel plate , can be customized according to customer requirements of different non-standard products .
Specification:
| Type | Size W*H*D(m m) | Pockets | Filter Area Class(m2) | Rated Airflow(m3/h) | Initial Pressure Drop(Pa) |
| HF-HXT-G3 | 287x592x600 | 3 | 2.3 | 1700 | 20 |
| 490x592x600 | 5 | 3.8 | 2800 | 20 | |
| 592x592x600 | 6 | 4.5 | 3400 | 20 | |
| HF-HXT-G4 | 287x592x600 | 3 | 2.3 | 1900 | 50 |
| 490x592x600 | 5 | 3.8 | 3000 | 50 | |
| 592x592x600 | 6 | 4.5 | 3600 | 50 | |
| HF-HXT-F5 | 287x592x600 | 3 | 2.3 | 2100 | 60 |
| 490x592x600 | 5 | 3.8 | 3650 | 60 | |
| 592x592x600 | 6 | 4250 | 60 |
Detailed Displays:
|
|
