Washable Air Purifier Pleated Panel Filter Mesh For Industrial Pre Filtration
Speciality:
■ The material is polyester synthetic fiber,conforming to European DIN53438.
■ Used in Pre-filtration for HEPA filter and the ventilation system for purification.
■ Low initial resistance,and Large dust holding capacity.
Specification:
Type | Size(mm) W*H*T | Rated Airflow(m3/h) | (Pa) Initial Pressure Drop | (Pa) Final Pressure Drop | Average arrestance |
| HF-KX-G3 | 595x595x46 | 3200 | 30 | 250 | 85% |
| 495x595x46 | 2700 | 30 | 250 | 85% | |
| 295x595x46 | 1600 | 30 | 250 | 85% | |
| 495x495x46 | 2200 | 30 | 250 | 85% | |
| HF-KX-G4 | 595x595x46 | 3200 | 40 | 250 | 95% |
| 495x595x46 | 2700 | 40 | 250 | 95% | |
| 295x595x46 | 1600 | 40 | 250 | 95% | |
| 495x495x46 | 2200 | 40 | 250 | 95% |

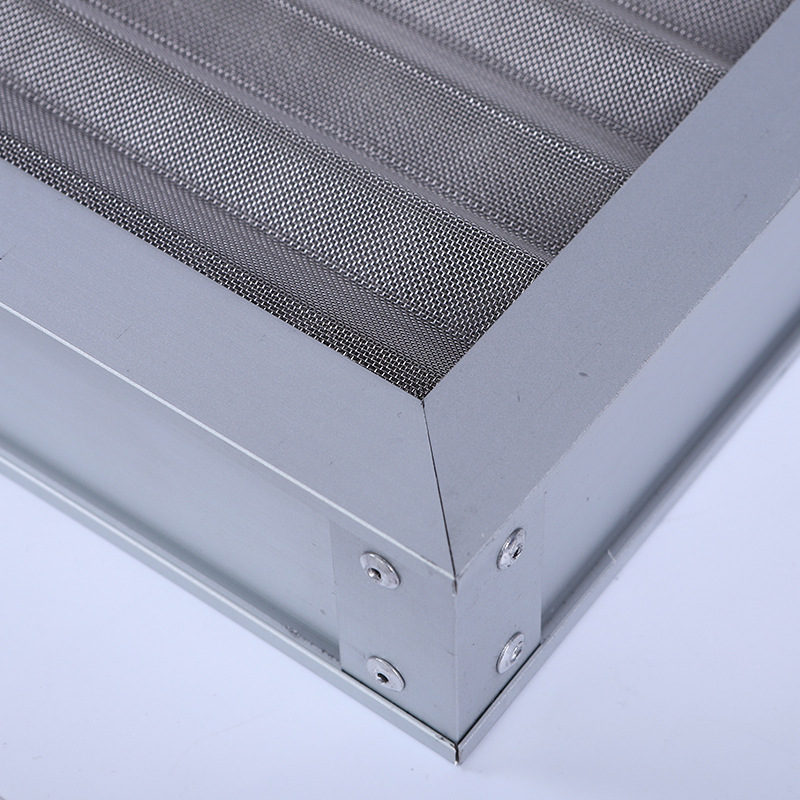

Detailed Displays:
|
|
